Ultima Terabox

Ultima Terabox

Ultima Terabox

Fast secure archiving and distribution



Download datasheet

Ultima Terabox




Ultima Terabox fits seamlessly into your DICOM workflow, assuring secure archiving of your data and images.




Ultima Terabox fits seamlessly into your DICOM workflow, assuring secure archiving of your data and images. Thanks to its web portal, Ultima Terabox distributes images and clinical reports within your institution or from a distant location. The RAID 6 technology guarantees maximum security for your archive and allows hot swap of defective hard drives while staying online.


Interested in this product ?


ARCHIVING
  • Fast and secure archiving, multi-criteria search
  • Real-time DICOM accessibility
  • Storage management in time (compression)
COMMUNICATION WITH DICOM ENTITIES
  • Multi-manufacturers, multi-modalities (unlimited connections)
  • All communication methods (send, receive, retrieve)
  • Automatic routing to multiple destinations according to rules based on DICOM fields
HIS/RIS COMMUNICATION
  • Patient information update (A08)
  • Patient/exam data fusion and reconciliation (A40)
  • Medical Reports Integration (R01)
VIEWER
  • Complete set of measurements & annotations / advanced comparative mode & MPR
  • Web Viewer, unlimited & simultaneous remote connection
VIRTUAL MEDIA (click here to download the datasheet)
  • Cloud sharing of DICOM studies in 1 click
  • Studies, DICOM viewer & clinical report are selected and automatically packaged
  • An e-mail including the link and the password is automatically sent to one or more destinations
  • The e-mail template is completely customizable and includes instructions
  • The expiration date of the stored studies is configurable
  • Data are encrypted (AES 256) and totally secured (SSL protocol)
  • The storage space is certified SSAE16/SOC1, SOC2, ISAE 3402
INTERFACE
  • Ergonomic, user-friendly and multifunctional
  • Web architecture, unlimited simultaneous connections from all PCs in your institution
  • Advanced & completely configurable user accounts and administration rights
  • Complete real-time tracking of orders: deleting, media virtualizing, sending, viewing, etc.
  • Complete audit log
CLINICAL REPORT
  • Creation of clinical reports with images & hyperlinks on Ultima web interface
  • Reports imported in several formats
  • Automatic inclusion of reports through the RIS (HL7)


Interested in this product ?

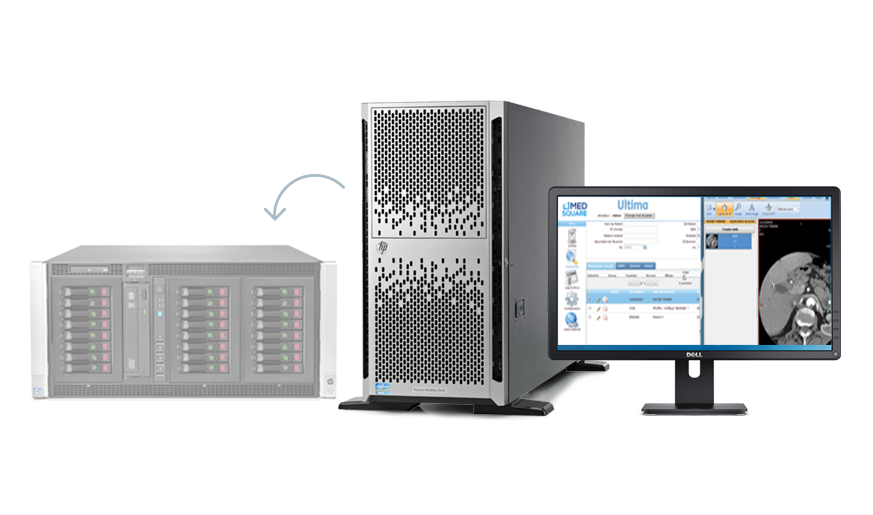

HP SERVER PROLIANT ML350 G8
  • Intel® Xeon®CPU E5-2609 0 @ 2.40GHz
  • RAM : 4GB
  • Windows Server 2008 R2 Standard
  • Microsoft SQL Server 2008 R2
  • Dimensions (H x L x D) 21.8 x 74.0 x 46.2 cm
  • Weight 35 kg
  • Power supply: 100 - 240 V, 460 W
  • Integrated Network Card 1GB
  • Flat Monitor E2014H 49.4cm (19.5”), VGA and DVI-D
  • Optical mouse and keyboard
ULTIMA DICOM SOFTWARE

Fully DICOM 3.0 Compliant & provides the following DICOM services:

  • Verify SCU/SCP
  • Store SCU/SCP
  • Query/Retrieve SCU/SCP (C-GET/C-MOVE/C-FIND)
  • Storage commitment SCP
  • IHE compliant
HARDWARE CONFIGURATIONS
  • Patients’ data and database installed on hard drives configured in RAID 6
  • Operating system installed on 2 hard drives configured in Raid 1
  • Automatic e-mail alert in case of hardware errors
  • Possible configurations: Storage capacity with lossless compression
    • Ultima A075       7.5 TB usable
    • Ultima A100       10 TB usable
    • Ultima A150       15 TB usable
    • Ultima A200       20 TB usable
    • Ultima A300       30 TB usable


Interested in this product ?


REPLICATOR :

Instantaneous and configurable data replication through the network on an independent storage box

WEB REMOTE ACCESS (click here to download the datasheet) :

Remote and secure connection to theTerabox through the web, with different levels of compression for quick viewing

QUALITY CONTROL (click here to download the datasheet) :

Correction of discrepancies between acquired images and patient information associated with those images



Interested in this product ?
